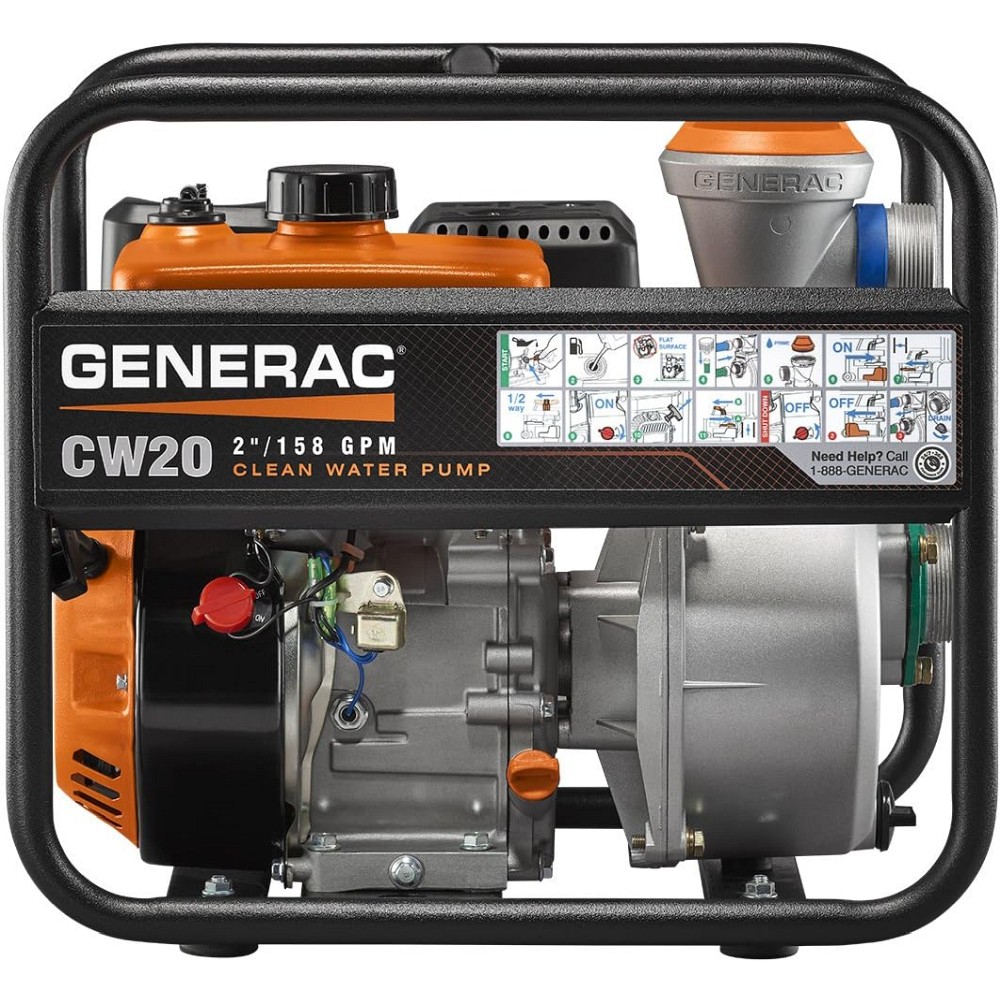

Part Number GECW20

Tackle big jobs faster with a CW20 water pump, featuring a powerful Generac 208cc OHV engine and custom Easy Prime™ funnel design for quick and easy priming. Its durable silicon carbide mechanical seals and cast iron volute and impeller keep this pump running longer and more efficiently. The Generac CW20 is protected by a durable 7/8” frame to create a stable base and withstand the harsh environment. The CW20 is designed for easy operation, featuring onboard instructions with icons of key touch points. Color-coded suction and discharge ports to ensure the correct hose connections (Blue = Discharge; Green = Suction). The Generac 208cc engine has a low-oil shut down in case the unit tips too far for proper lubrication. The aluminum pump has a capacity of up to 158 gallons per minute and has a silicon carbide mechanical seal for long life.

Specifications

Engine Type: 4 cycle/OHV
Engine Displacement: 208cc

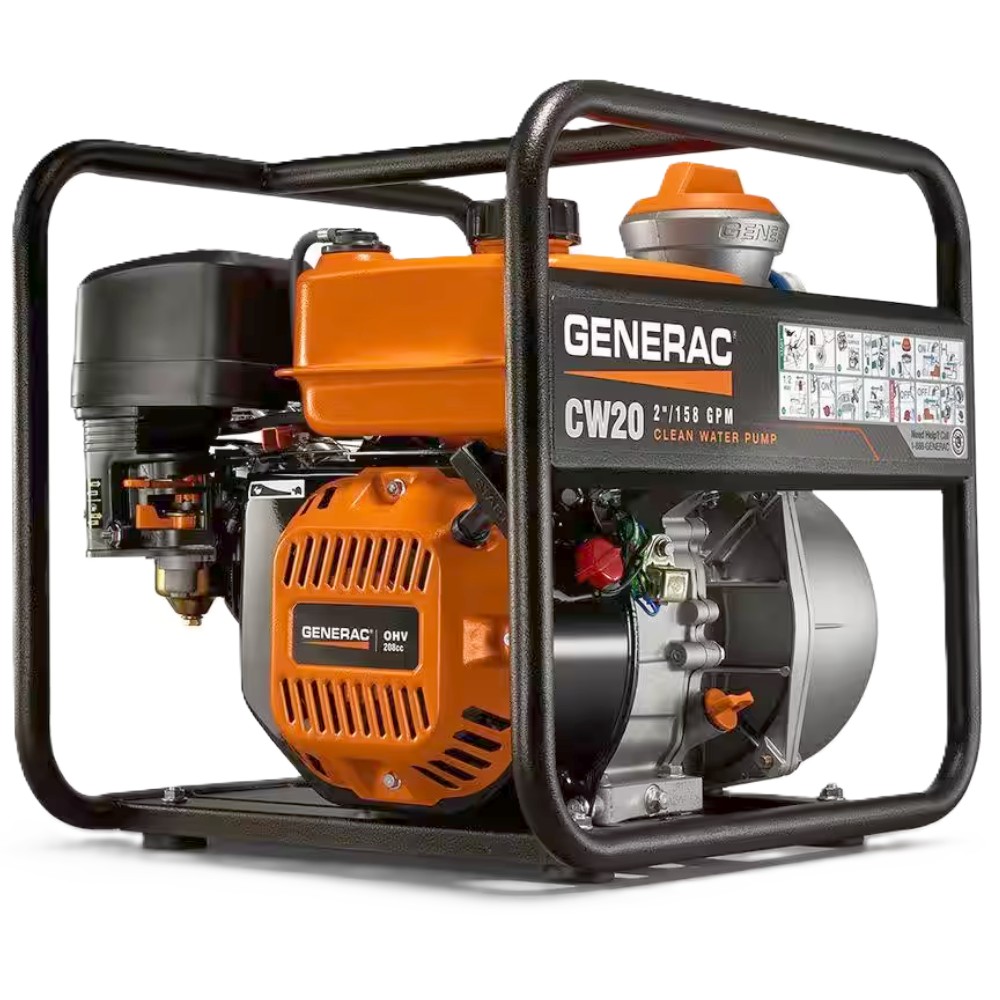

Start Type: Recoil Pull Start
Recommended Oil: 10W-30 / SAE30
Low Oil Shutdown Method: Low Level
Fuel Capacity: 0.95 Gal (3.6 L)
Max Run Time: 2.0 hrs
Flow: 158 gallons per minute (598 lpm)
Max Total Head: 108 feet (32.9 m)
Max Suction Lift: 26 feet (7.9 m)
Mechanical Seal Type: Silicon Carbide
Suction Port: 2.0″ NPT
Discharge Port: 2.0″ NPT
Pump Housing: Aluminum
Impeller: Cast Iron
Volute: Cast Iron
L x W x H: 19.0″ x 15.2″ x 17.0″
Unit Weight: 53.6 lbs / 24.3 kg
Warranty: 1 Year
Please note that these specifications are subject to change by the manufacturer.
