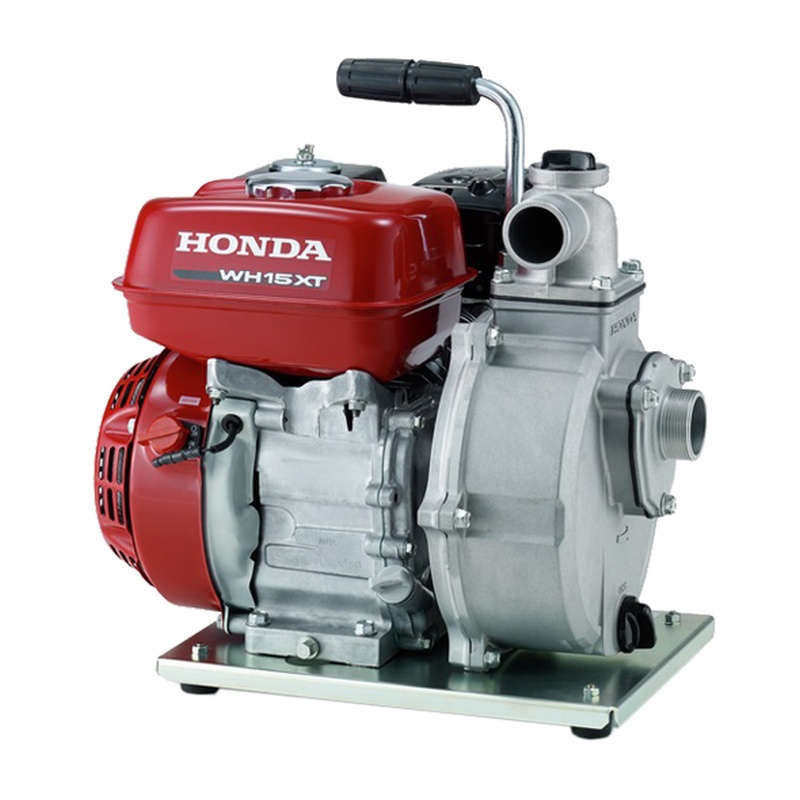

Honda WH15XT Water Pump

    •             Part Number HOWH15XT

    Honda’s WH15 is a powerful 1.5″ high pressure pump with up to a 130 foot head that delivers a maximum of 98 gallons per minute. A portable and versatile pump, the WH15 is able to handle large volumes of water, making it ideal for sprinklers, nozzles and many other applications. It’s powered by Honda’s GX120 engine, a leader of its class and the same engine that powers many of Honda’s products.

    SKU: HOWH15XT Tag:

    Specifications

    Engine – GX120
    Displacement – 118cc
    Bore and stroke – 2.4″ x 1.7″
    Compression Ratio – 8.5:1
    Oil Alert – N/A
    Pump Type – High Pressure, Centrifugal, Self-priming
    Volute – Rigid Mounted Cast Iron
    Impeller – Cast Iron
    Mechanical Seal (Pump case / impeller) – Carbon/Ceramic
    Priming time – 80 sec. at 16.4 ft.
    Drive system – Direct

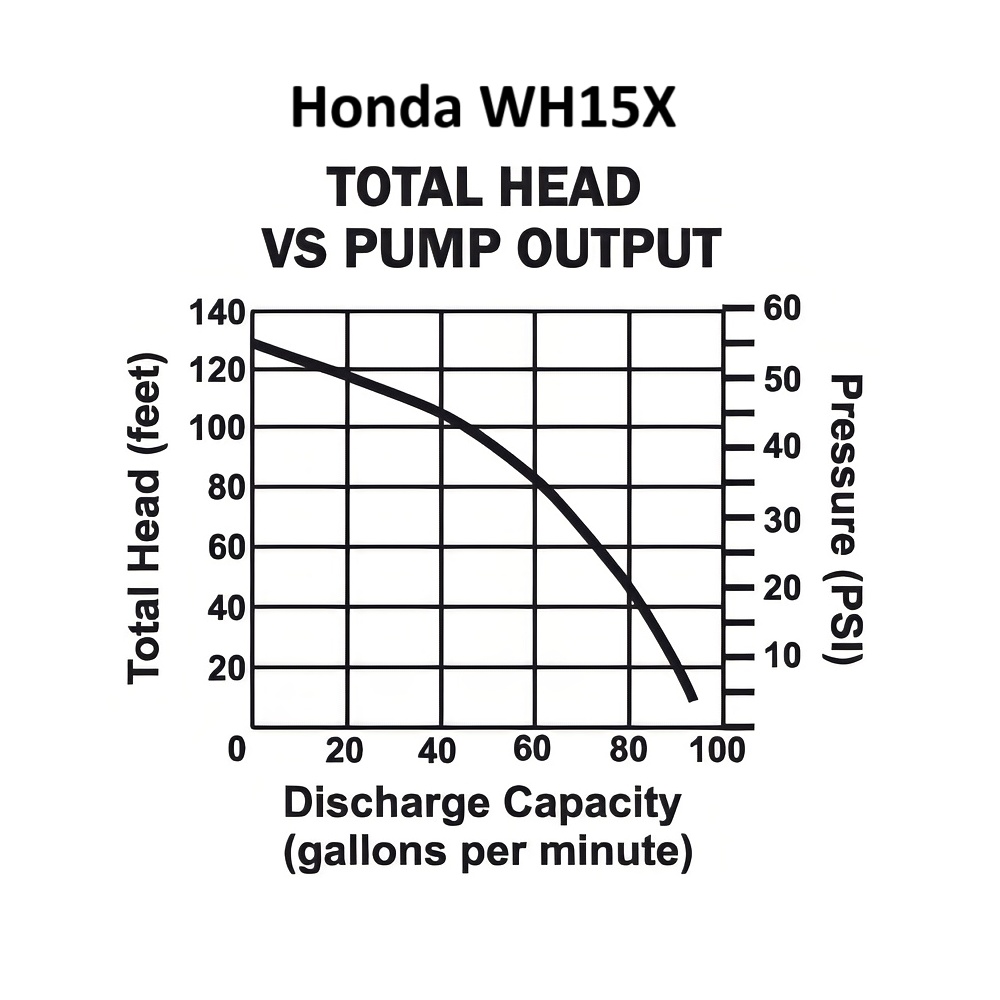

    Discharge capacity – 98 gals./min.
    Suction port diameter – 1.5″ NPT
    Discharge port diameter – 1.5″ NPT
    Total head lift – 131 ft.
    Suction head lift – 26 ft.
    Maximum pressure – 57 psi
    Solids handling – N/A
    Dimensions (LxWxH) – 16.3″ x 14.2″ x 16.3″
    Dry weight – 49 lbs.
    Fuel Capacity – 0.53 gal
    Run Time @ Max Discharge – 1.5 hours
    Strainer Part # – 78325-YB7-020
    Residential Warranty – 24 months
    Commercial Warranty – 12 months
    Please note that these specifications are subject to change by the manufacturer.
