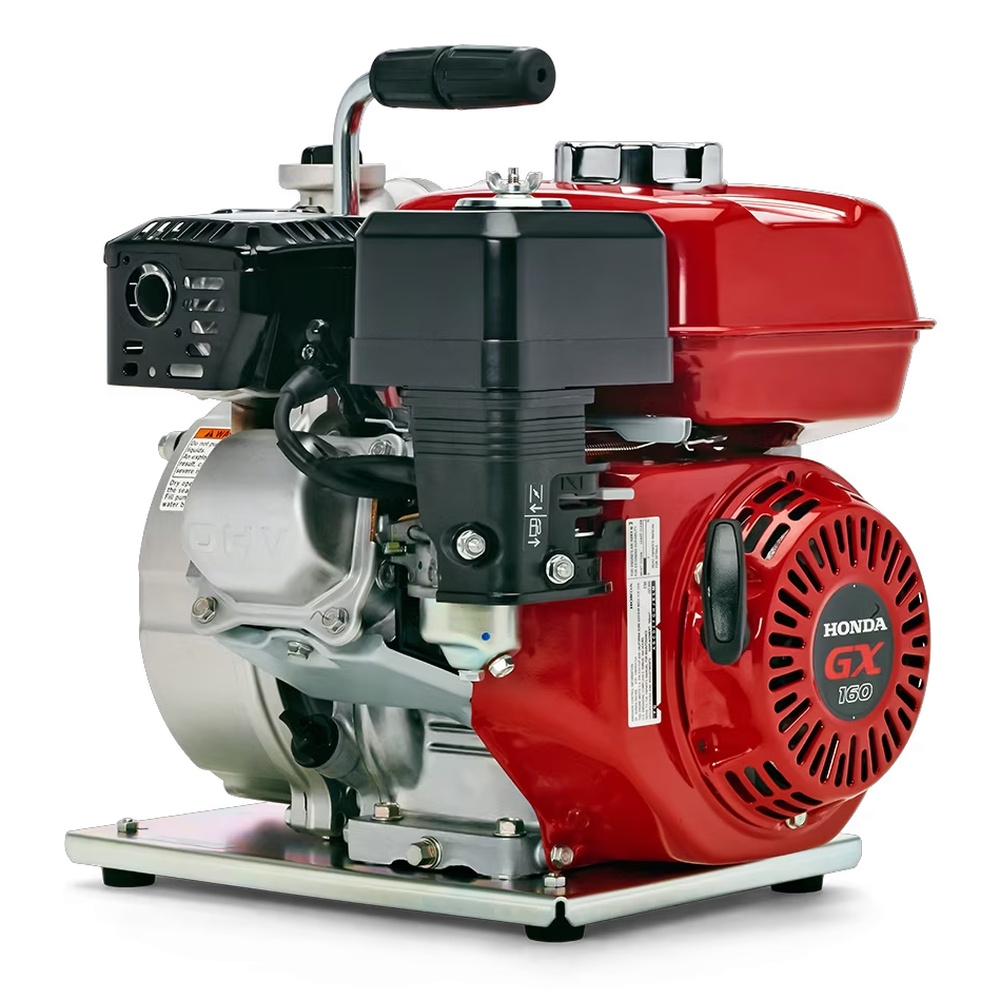

Honda WH20XT Water Pump

    •             Part Number HOWH20XT

    Honda’s powerful WH20 is a powerful 2″ high pressure pump with a 148 foot head that delivers a maximum of 119 gallons per minute. With the ability to handle large volumes of clean water at high pressure, the WH20 is ideal for applications that need lots of water moved long distances fast. Firefighting, flood control, gold mining, boat washing, irrigation; both commercial and residential owners will find a use for the reliable Honda WH20 water pump. It’s powered by Honda’s ultra-reliable GX160 engine, a leader of its class and the same engine that powers many of Honda’s products.

    SKU: HOWH20XT Tag:

    Specifications

    Engine – GX160
    Displacement – 163cc
    Bore and stroke – 2.7″ x 1.8″
    Compression Ratio – 9.0:1
    Oil Alert – N/A
    Pump Type – High Pressure, Centrifugal, Self-priming
    Volute – Rigid Mounted Cast Iron
    Impeller – Cast Iron
    Mechanical Seal (Pump case / impeller) – Carbon/Ceramic
    Priming time – 80 sec. at 16.4 ft.
    Drive system – Direct
    Discharge capacity – 110 gals./min.
    Suction port diameter – 2″ NPT
    Discharge port diameter – 2″ NPT
    Total head lift – 141 ft.
    Suction head lift – 26 ft.
    Maximum pressure – 64 psi
    Solids handling – N/A
    Dimensions (LxWxH) – 16.7″ x 14.8″ x 15.9″
    Dry weight – 51.8 lb.
    Fuel Capacity – 0.82 gal
    Run Time @ Max Discharge – 1.5 hour
    Strainer –  Part #78325-YB7-702
    Residential Warranty – 24 months
    Commercial Warranty – 12 months
    Please note that these specifications are subject to change by the manufacturer.
