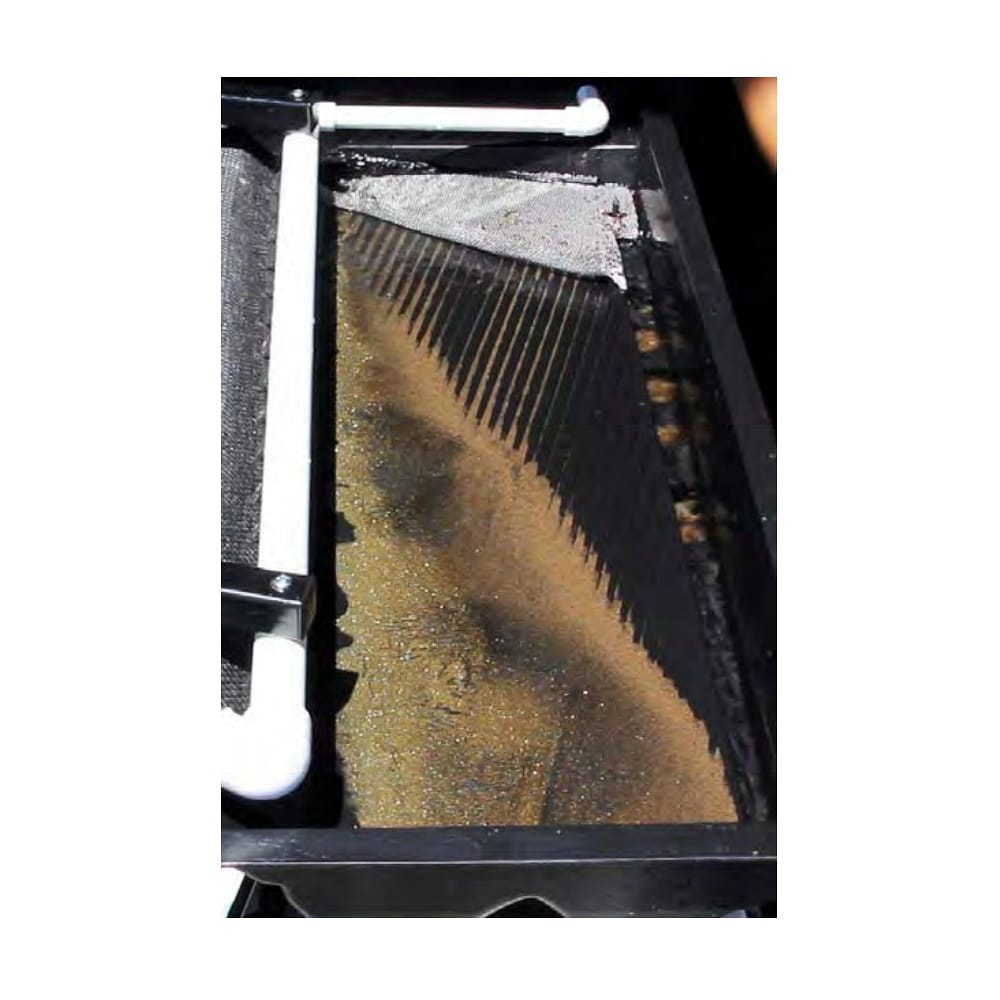

This is a compact shaker table that will concentrate gold and other values down to 500 mesh and will process up to 800 pounds of light placer or crushed hard rock material per hour. The volume for heavy black sand concentrates will be much lower, 100 – 400 lbs per hour. Absolutely ideal for use with rock crushers and active placer operations. You can process material up to 1/8 of an inch with this table and it is equipped with built in nugget traps. All eccentrics have ball bearings for long life and precision action. The ST1 comes equipped with a magnetic separator that helps liberate the gold and provides for superior recovery. The ST1 Table has 4 discharge ports, an essential system for the professional:

Port #1: Pure Gold
Port #2: Roughing Port
Port #3: Middling’s
Port #4: Tailings

This table must be bolted down with absolutely no vibration and requires a 110 Volt power source. Does not include a deck screen or stand, both are sold separately. The motor is ½ horsepower, 8.6 Amp, 115 Volt, 60 Hz, 980 Watt. Water usage is approximately 8-14 gallon/minute. Dimensions 46″ x 9.5″ x 14″ Weight 60 lbs.

INSTALLATION & OPERATION INSTRUCTIONS FOR THE ST-1 SHAKER CONCENTRATING TABLE
