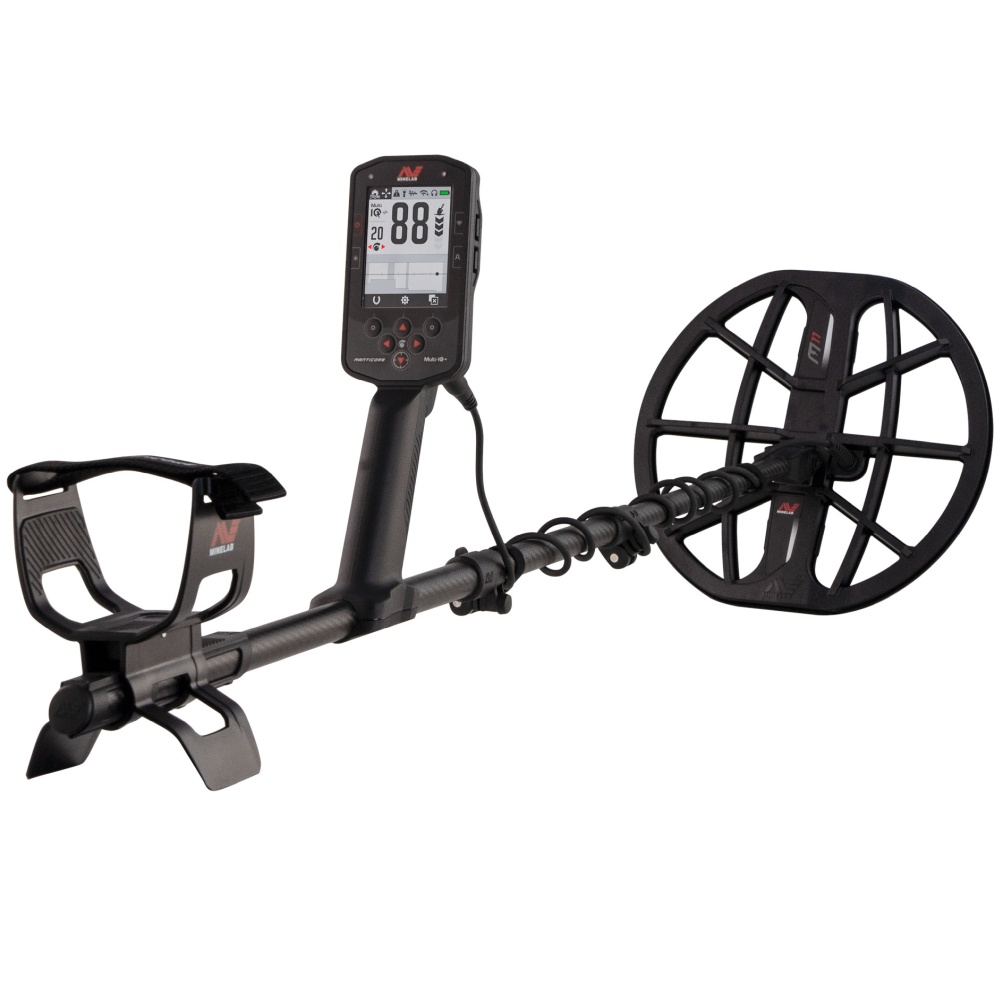

Minelab Manticore

  • video-thumb-0
    •             Part Number ML3228-0200

    Minelab’s most powerful detector yet, Manticore finds targets faster, more clearly, and in even the most challenging environments. With impressive capabilities and technologies, nothing will go undetected. More effective than even the most high-end models in the market, Manticore brings power, precision and accuracy to detecting in a way that wasn’t previously possible.

    MULTI IQ+:  Minelab’s revolutionary technology has 50% more power than traditional models and is the highest-powered simultaneous multi-frequency machine on the market.

    POWERFUL 2D ID MAP:  Identify your targets with greater visual and audible target insights. Exceptionally accurate target ID allows you to accept or reject finds quickly and confidently.

    ULTIMATE SEARCH MODES: Over 10+ preset search modes allow you to set the stage for success, with the ability to customize up to 10 unique modes tailored to your specific needs.

    CHOICE OF COILS: Comes with the M11 (11″ Round Double-D coil) and choose from optional M8 (8″x5.5″ Elliptical Double-D) and M15 (15″x12″ Elliptical Double-D) coils.

    LIGHTING & VIBRATION: Detect even when the sun goes down with features such as Control Box Flashlight, Display Backlight with Auto Adjust, Backlit Keypad and Handgrip Vibration.

    CLEAR AUDIO: Built in external speaker allows for crystal-clear audio and comes with Low Latency Wireless Headphones.

    UNRIVALLED CONSTRUCTION & WATERPROOF: Powerful yet lightweight, Manticore weighs only 1.3 kg (2.9 lbs.) and includes a three-piece, compact Carbon-Fibre shaft system. Waterproof up to 16 ft (5 m).

    BUILT TO LAST: A three-year warranty with software upgrade capability allows detection far into the future.

    SKU: ML3228-0200 Tag:

    Specifications

    Detect Modes: (Customizable) All-Terrain (5), Beach (4), Goldfield (1)
    Operating Frequencies: Multi-IQ+, 5 kHz, 10 kHz, 15 kHz, 20 kHz, 40 kHz
    Noise Cancel: Auto, Continuous Auto, Manual (-9 to +9)
    Ground Balance: Auto, Manual, Tracking
    Sensitivity: 1 to 35
    Target Identification: Conductive: 0-99 with ferrous indication
    2D ID Map: Two-Dimensional ID Map System with Target Trace
    Target Tones: 1, 2, 5 – Tone | 1, 2, 5 – Region All Tones
    Target Volume: 0 to 25
    Target Pitch: 1 to 50
    Ferrous Volume: 0 to 25
    Ferrous Pitch: 1 to 50
    Audio Themes: Normal, Enhanced, Continuous Pitch
    Volume Profiles: Simple, Medium, Rich, Overdrive
    Threshold Level: 0 to 25
    Threshold Pitch: 1 to 50
    Recovery Speed: 0 to 8
    Ferrous Limits: Upper: 0 to 14 | Lower: 0 to 9
    Ferrous Limits Custom: 1 to 4
    Shortcuts: Soft Keys: 2 (Action Bar), 1 (User Button)
    Depth Indicator: 5 levels
    Shaft System: 3-piece highly collapsible carbon-fiber
    Extended Length: 1440 mm / 56.7 inch
    Collapsed Length: 630 mm / 24.8 inch
    Weight: 1.3 kg / 2.9 lbs
    Standard Coil: (M11) 11-inch round Double-D coil with skid plate (waterproof to 5 m / 16 ft)
    Audio Output: Speaker | 3.5 mm (1/8″) headphones | Wireless low latency headphones
    Headphones: Minelab ML-105 wireless low latency headphones (non waterproof) (Included)

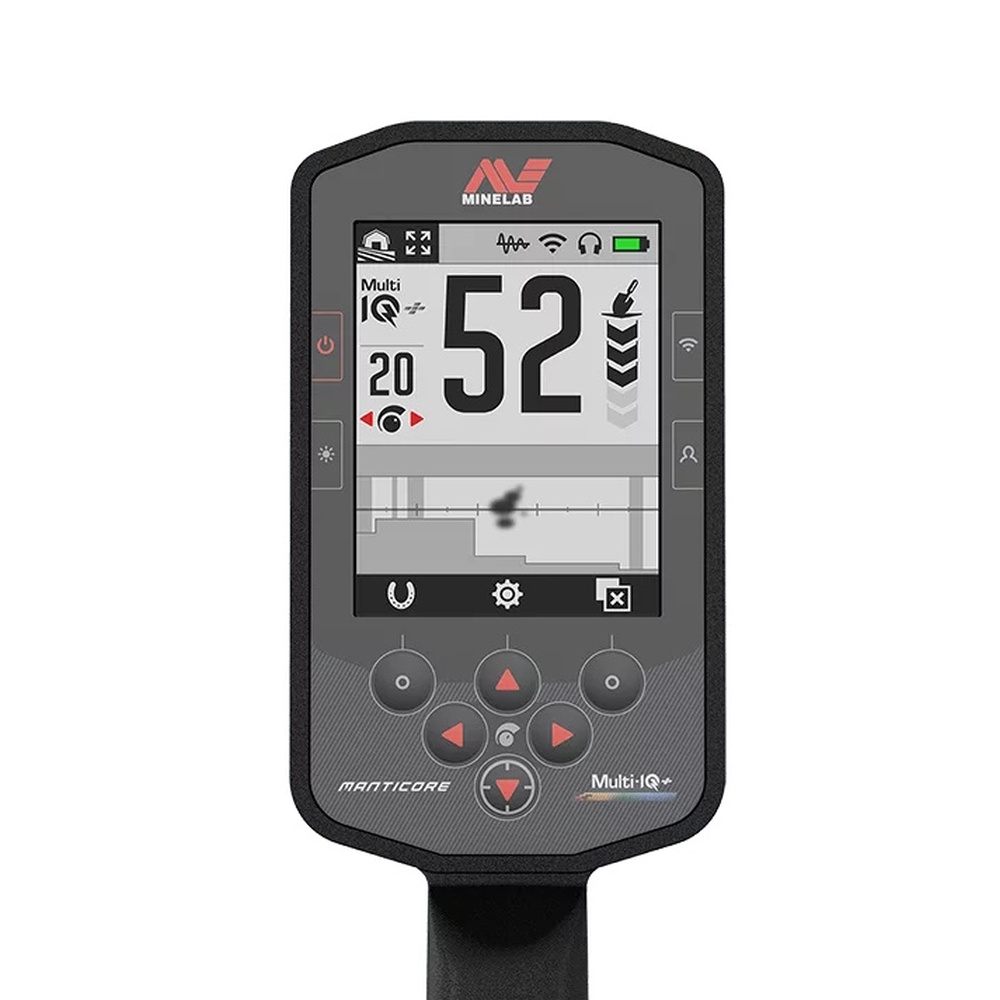

    Display: Color LCD
    Display Backlight: Manual (1 to 10), Auto Adjust
    Keypad Backlight: On, Off
    Flashlight: Low, Medium, High, Off
    Handgrip Vibration: On, Off
    Battery: Internal rechargeable Lithium-ion battery
    Battery Runtime: Approx. 9 hours
    Battery Charge Time: Approx. 7 hours
    Waterproof: Waterproof to 5 m / 16 ft, IP68
    Key Technologies: Multi-IQ+ (High Power Simultaneous Multi-Frequency)
    Included Accessories: USB Charging Cable, 5x Screen Protectors, 3.5 mm Headphone Audio Cable, Headphone Case
    Software Upgradable: Yes – via USB connection (Windows or Mac OS compatible)
    Please note that these specifications are subject to change by the manufacturer.
