Part Number JANMB1500

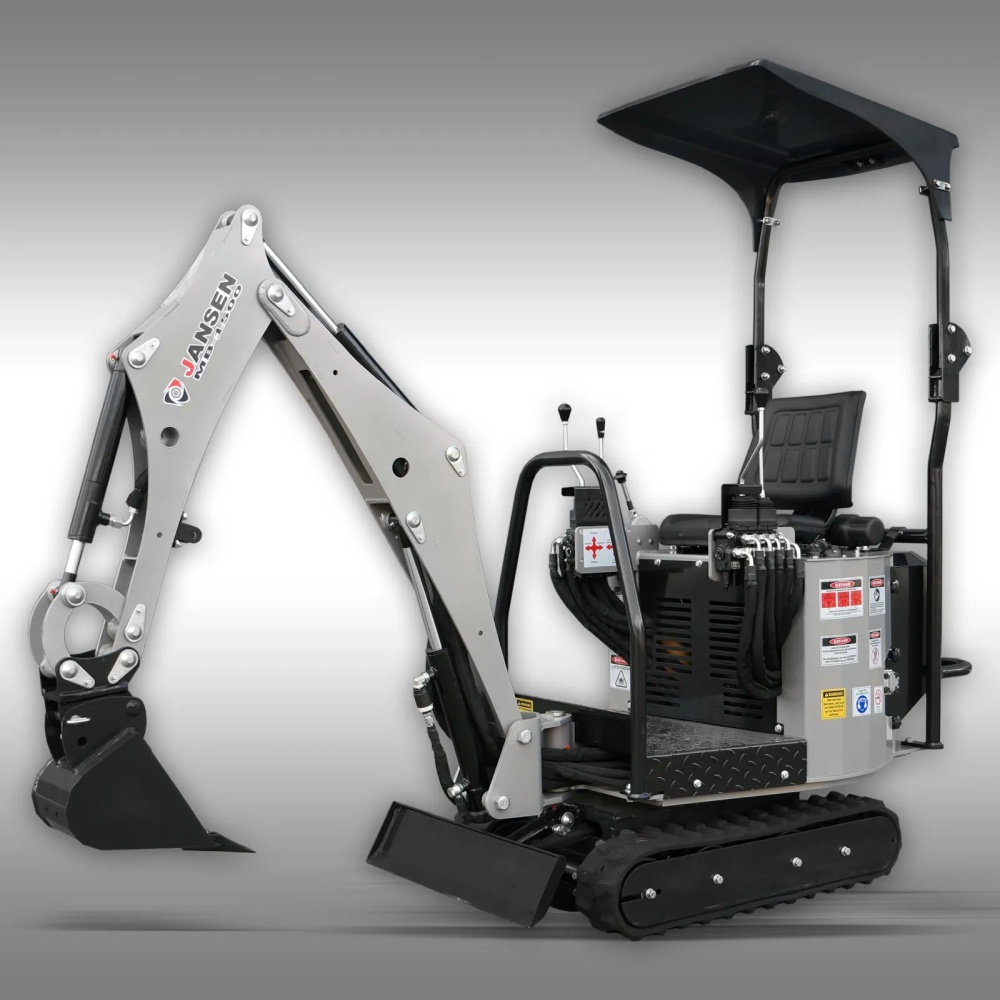

Our MB-1500 Mini Excavator is a compact multi-functional machine. It’s small, powerful and versatile. It uses a powerful 14hp Kohler engine to power the high-performance hydraulic system. The gear and pivot joint allows a 360° swivel radius. The dredging depth of 4.75 ft and ejection height of 5 ft make this machine your perfect tool for home projects or for your business. The low surface pressure and versatility ensure minimal damage to the soil, which is particularly important when working in gardens.

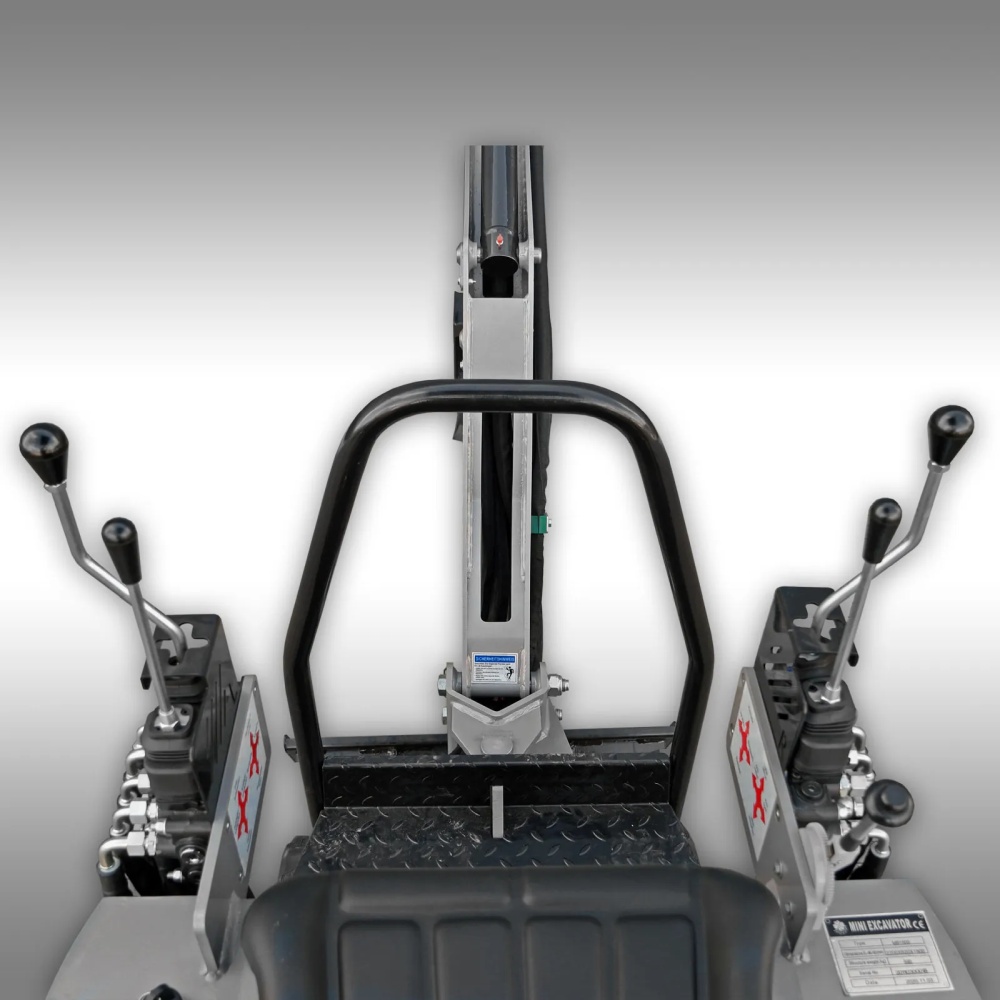

The MB-1500 mini excavator comes with four-way control lever steering. As shown in the pictures, it has 2 joystick levers for operating the excavator arm and the scoop, and 2 control arms for the chain drive and the dozer blade. You can assign the functions yourself based on how the hydraulic lines are connected. A folding roll-over bar with built-in canopy, the robust hydraulic dozer blade, and intuitive, simple operation complement the performance of this mini excavator ideally.

A recurring question: Can the bucket also be reversed so the opening is at the front? Yes, you can. Simply turn the quick-change adapter and you can fit the buckets the other way around.

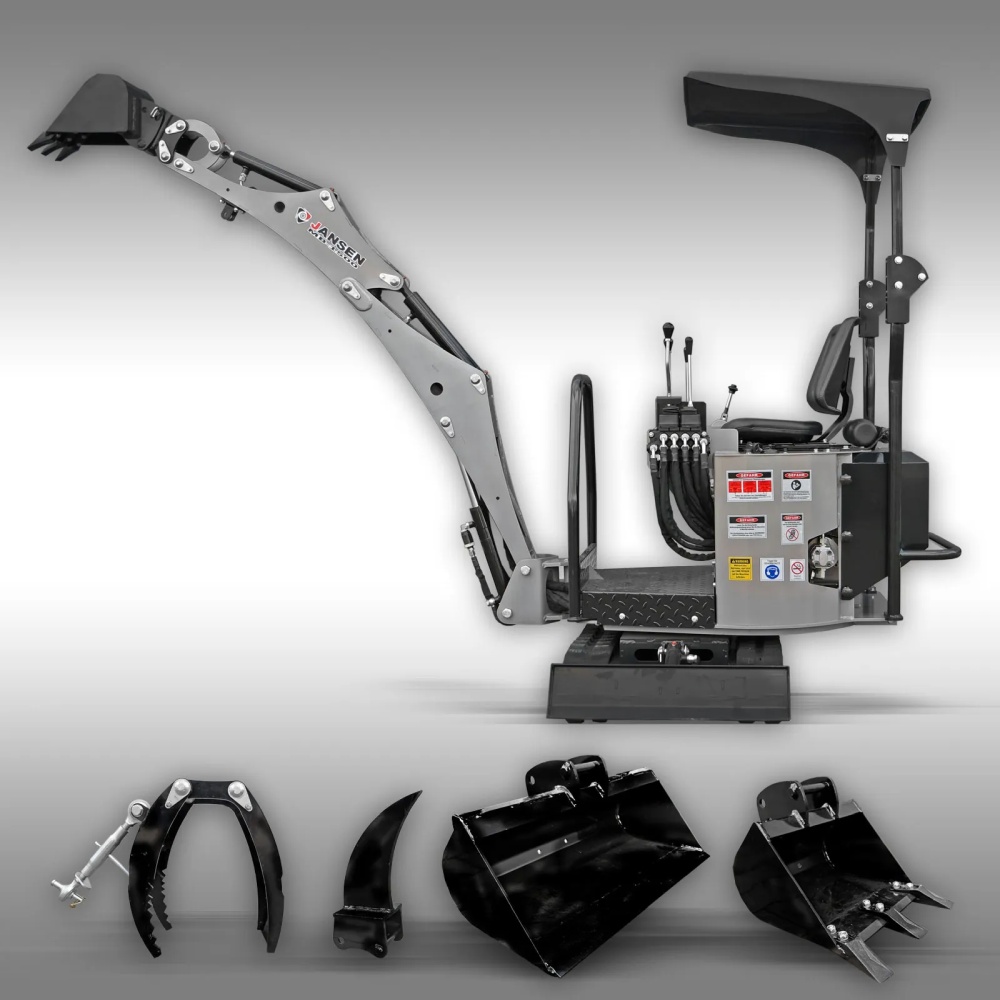

This Is A Complete Set! An Order Includes The 8 In, 12 In, And 24 In Buckets, Plus A Ripper For Breaking Up Soil And A Grapple For Lifting Rocks Or Logs. The Extremely Practical Quick-Change System Allows You To Quickly Change Attachments.

Specifications

  • Engine: 14hp Kohler Command Pro
  • Fuel type: Regular gas
  • Starter: Electric starter
  • Boom swing angle range: 360 degrees
  • Overloading height: max. 7 feet
  • Dumping height: max. 5.5 feet
  • Digging depth: max. 4 1/2 feet
  • Reach: max. 8 feet
  • Tractive performance: 0.9 t
  • Ripping force: approx. 1250 lbs
  • Load capacity (excavator arm fully extended): approx. 660lbs (dozer blade down)
  • Load capacity (excavator arm fully extended): approx. 275lbs (dozer blade up)
  • Weight: approx. 1300lbs
  • Shipping weight: approx. 1340
  • Crawler dimensions: approx. 8’ x 33″ x 6 1/2 feet (L x W x H)
  • No assembly required / ships ready to go/check fluids, bolts, and connections before operating.
  • Complete set: incl. 8”, 12”& 24” inch buckets, plus ripper and grappler
  • Electric starter: 12 Volt
  • Operating hours meter
  • Fuel tank capacity: 1 1/2 gal.
  • Oil tank capacity: approx. 6 gal (HLP-46)
  • Swivel radius: 360°
  • Hydraulic pump: 3.2 cc double pump
  • Hydraulic flow rate: approx. 4 1/2 gal per minute
  • Operating pressure: approx. 2300 lbs

Please note that these specifications are subject to change by the manufacturer.
