Part Number JANMB300

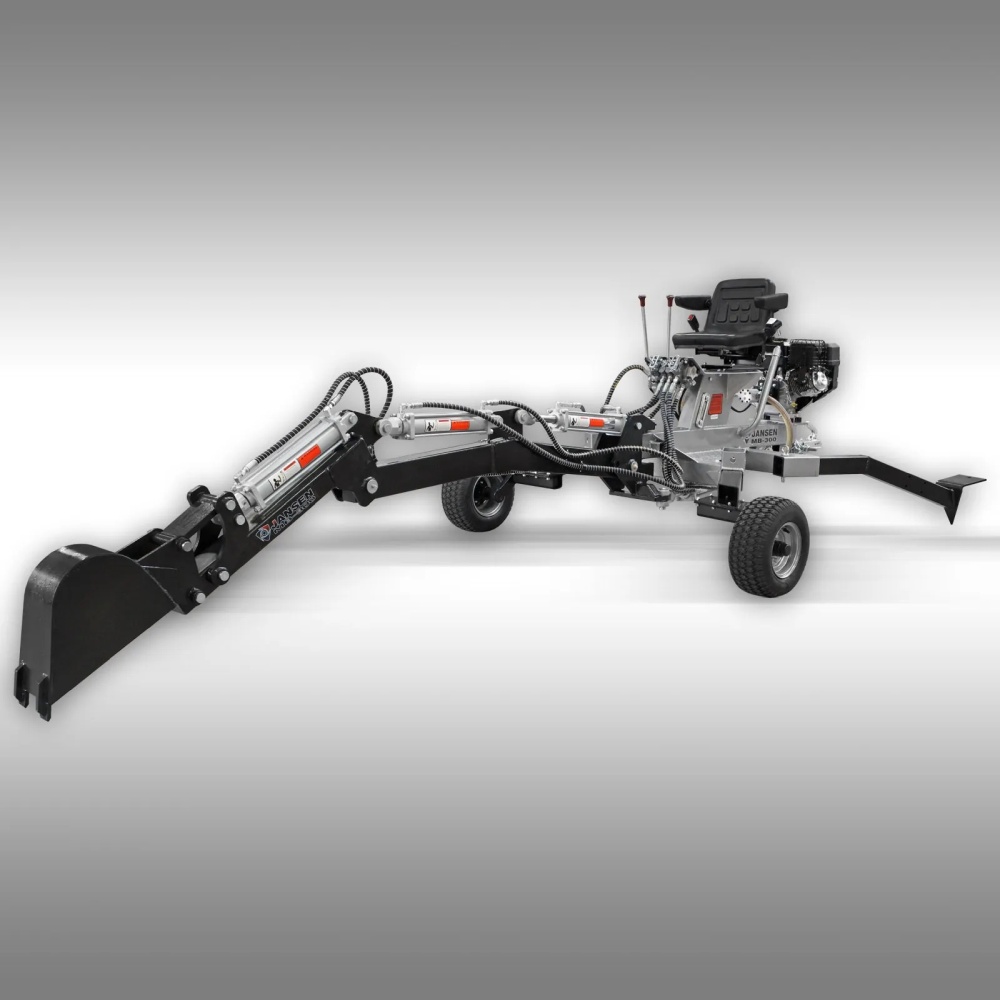

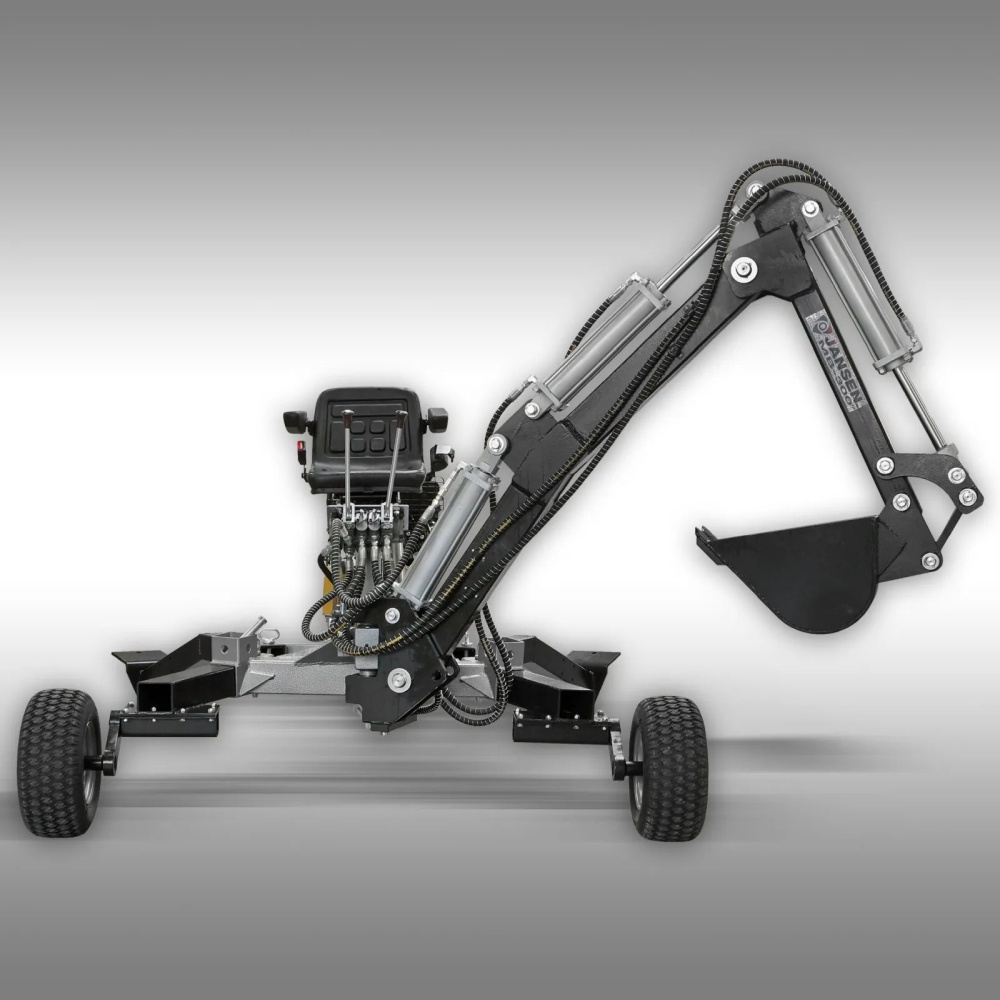

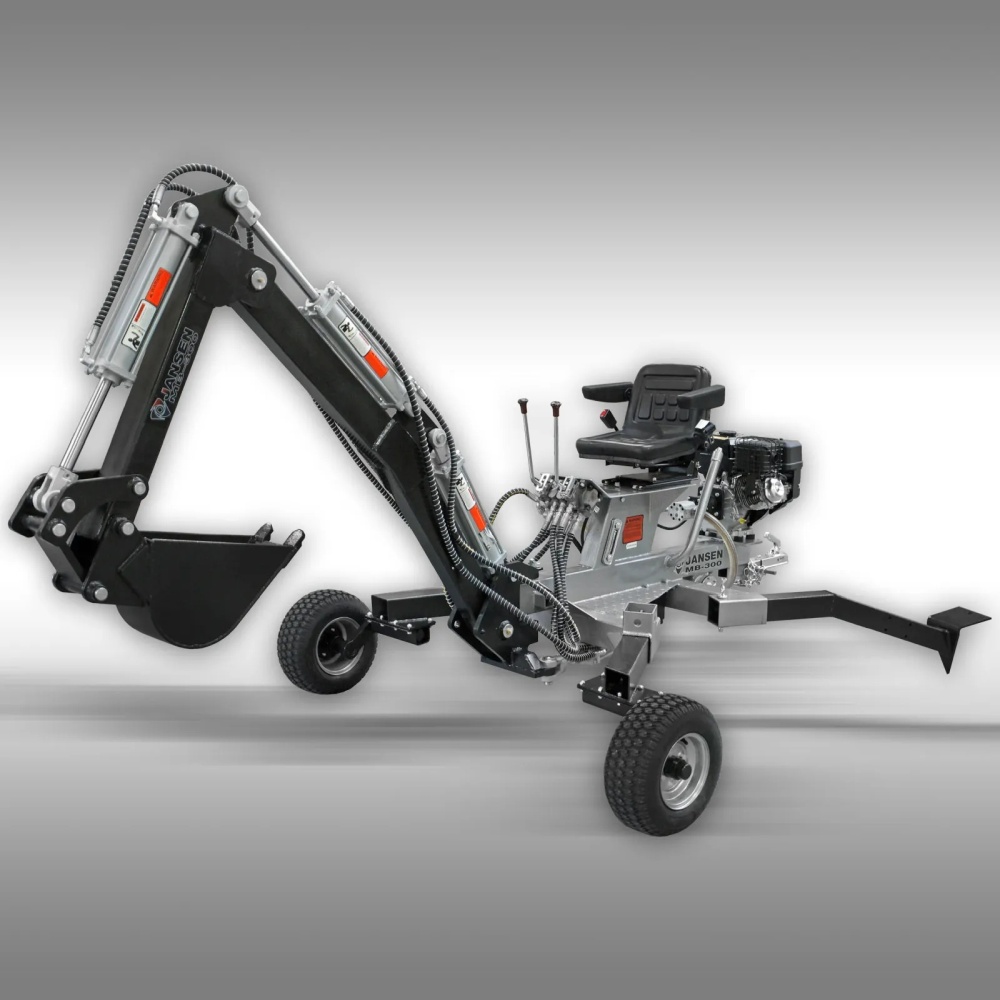

Upgrade your productivity with our MB-300 towable backhoe. Unleash the power and efficiency of our top-of-the-line towable backhoe, meticulously crafted to optimize productivity. Featuring an impressive 130-degree operating radius and a robust 9.5 HP, four-stroke LCT motor, the MB-300 is the ultimate workhorse. The 9.5 hp motor by LCT is the perfect size to feed the large 3.8 gallon per min hydraulic system without sacrificing the user’s comfort by making the machine jumpy or vibrating too much.

The sleek gray and black powder coat is amazingly durable. It tops thick hardened steel, making this one of the toughest machines on the market. With a width of 6 feet from outside of wheel, to outside of wheel and a length of 10 feet when the boom is curled in, our backhoe offers exceptional maneuverability in tight spaces. In addition, It is the perfect size for storing in a garage or barn or towing on a trailer. The MB-300 is quipped with 16-inch off-road wheels capable of reaching speeds of up to 35mph, our backhoe is ideal for towing with a small tractor or ATV. Please note that the wheels are not rated for use on roads or highways.

The MB-300 Towable Backhoe has a digging depth of 7 feet and an extended reach of up to 8 feet, with a ripping force of approximately 4,500 pounds. Experience precise control with four double-action hydraulic cylinders. The MB-300 can safely handle loads weighing up to 1,800 pounds. The MB-300 comes complete with a standard 9-inch bucket, and you can enhance your operations with additional optional buckets. Choose from a range of buckets: a 14-inch bucket with teeth (rip bucket), the 24-inch smooth bucket, or a 20 to 8-inch tapered bucket with teeth.

Specifications

  • Engine: 9.5 HP LCT, 4-stroke OHV engine Fuel Type: Regular unleaded
  • Starter: Recoil starter Weight: Approximately 1150lbs (excluding fluids)
  • Boom Swing Angle Range: 130 degrees
  • Digging Depth: Approximately 7 feet
  • Reach: Approximately 8 feet
  • Load Capacity: 420lbs (buckets)
  • Included: 9-inch bucket
  • Trailer Coupling: Includes 2″ ball and towing mechanism
  • Transport-friendly: Exchange wheels and support axles for easy transportation
  • Hydraulic System: 4 double-acting hydraulic cylinders, 2 lever control valve
  •  Packaging Dimensions: 88″ x 39″ x 33″ (L x W x H)
  •  Hydraulic Oil: Requires approximately 1 Q of Napa auto parts R&O 85-105 or Tractor Supply’s universal hydraulic fluid (10W40 or 15W40)
  •  Hydraulic Oil Volume: 4gal (HLP46)
  • Total Length: 127″ Support Width: 78″
  • Mainframe Width: 37″
  • Maximum Height: 77″
  • Hydraulic Pump: 3.8g/m
  • Steel Thickness: Ranges from 3 1/16″ to 1/4″

Please note that these specifications are subject to change by the manufacturer.
