Part Number JANRD800

The Jansen RD-800 track dumper is a flexible powerhouse. Perfect for a variety of applications. It has a powerful hydraulic system with a lifting capacity of 1750 lbs. The Jansen RD-800 is THE tool for valuable service and the chains allow it to be used on rough terrain, ideal for hauling heavy loads, whether that be for gardening and landscaping or home renovations. The intuitive, easy-to-reach steering makes it extremely easy and convenient to operate. The foldable footboard also proves to be extremely helpful and more comfortable for longer distances. The Jansen RD-800 track dumper has a powerful 13 HP recoil start gasoline engine and is equipped with a skip with folding side walls which can also be removed to use the platform as a transport bed. You can load up to 1750 lbs on even terrain, up to 1333.8 lbs on a 17% or 10 degree slope, and up to 937 lbs on a 30% or 17 degree slope.

Some highlights of the Jansen RD-800 include hydraulic skip for easy tipping, solid steel construction to carry up to 800 kg, 6 forward and 2 reverse gears for optimal ease of operation, tough rubber track with track tensioner, steering clutch brake, tipping skip with folding and removable side walls, and foldable footboard.

Specifications

  • Engine type: 1 cylinder 4-stroke OHV engine, 389 cm³, 9.5 kW, Briggs and Stratton
  • Fuel: unleaded gasoline
  • Starter: recoil start
  • Assembled dimensions: 85x35x50 in (LxWxH)
  • Skip inside dimensions (closed): 52x32x12 in (LxWxH)
  • Skip outside dimensions (closed): 55x35x12 in (LxWxH)
  • Flat skip (without sides): 52×32 in (LxWxH)
  • Skip front edge height (closed): 31 in (from the ground)
  • Skip front edge height (open): 19 in (from the ground)
  • Drive system: gear drive
  • Steering: steering clutch brake
  • Gears: 6 forward and 2 reverse gears
  • Brakes: automatic safety brake

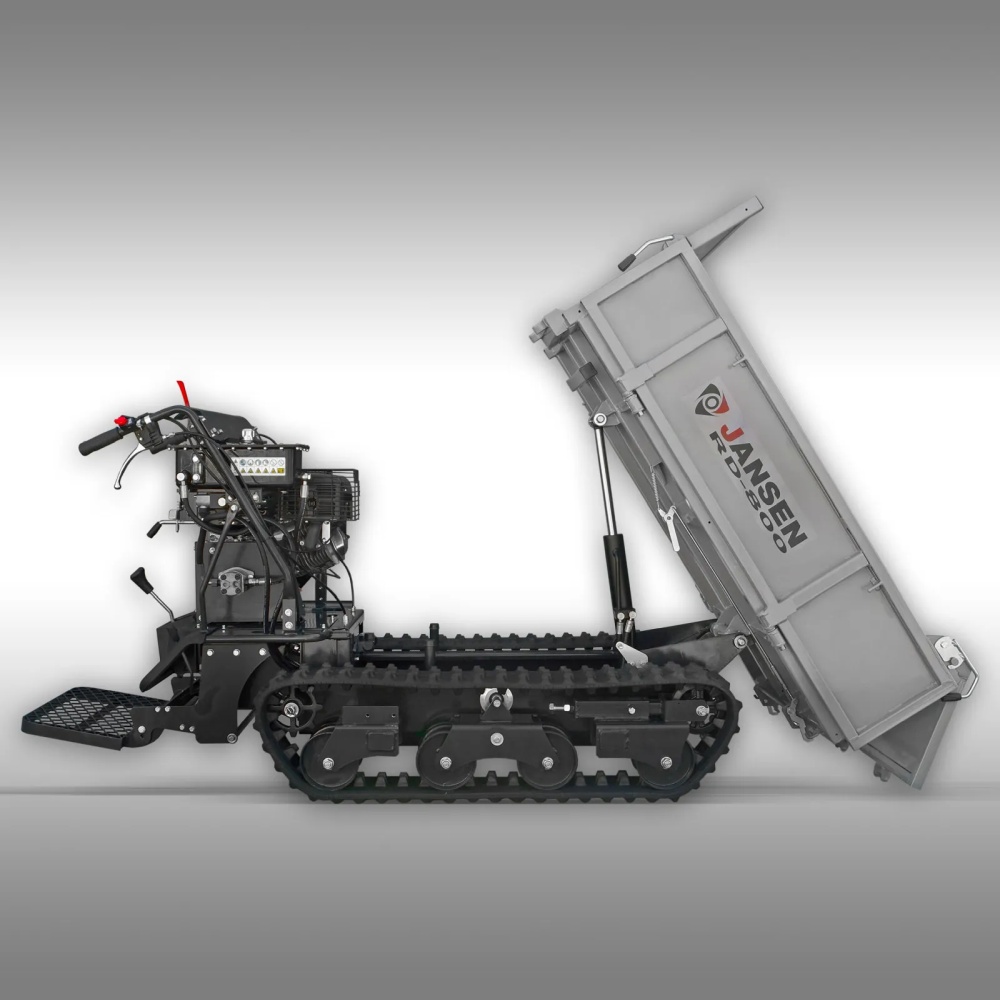

  • Hydraulics: tipping hydraulics, forward tipping
  • Load capacity: 1750 lbs

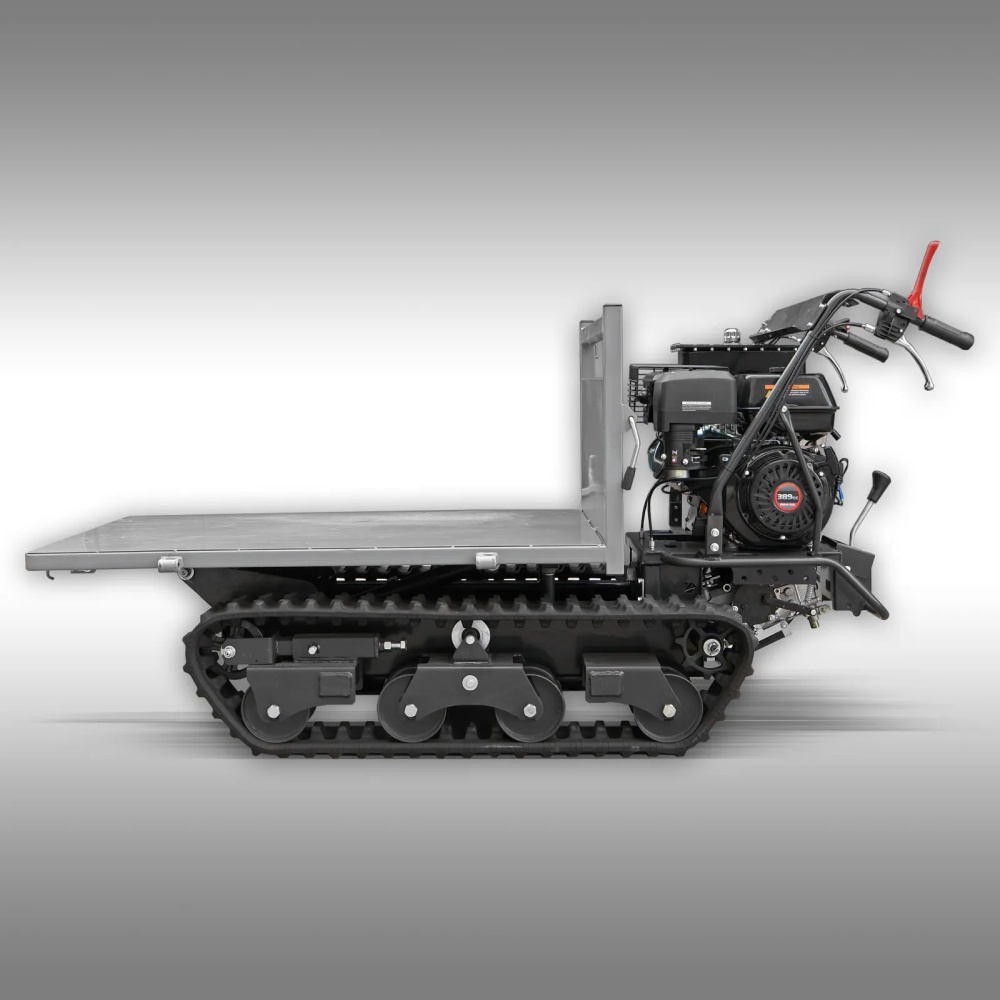

  • Platform: skip with folding side walls
  • Ground clearance: 5.7 in
  • Package dimensions: 87x37x47 in (LxWxH)
  • Shipping weight: 1102 lbs

Please note that these specifications are subject to change by the manufacturer.
